TE ConnectivitySwitzerland

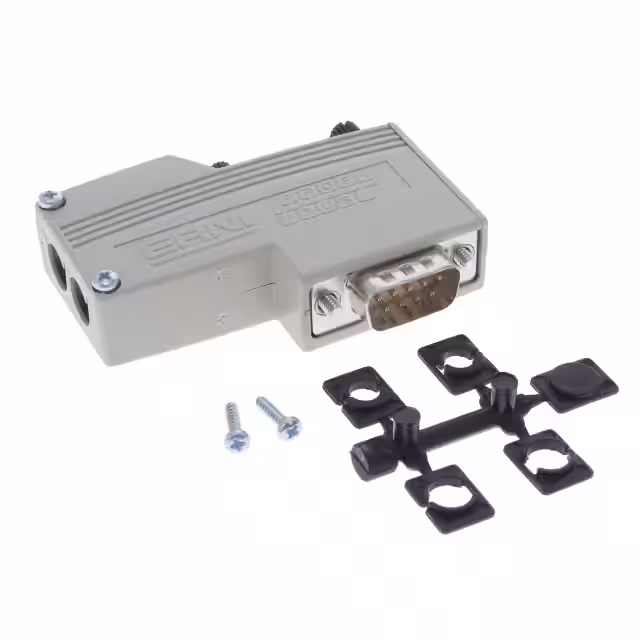

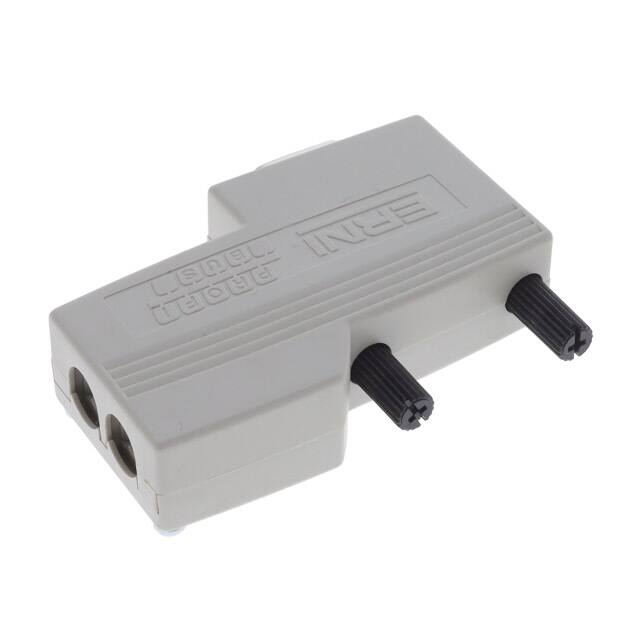

CONN D-SUB PLUG 9POS SCREW
All alternatives
View full reportTechnical parameters
Key specs
Positions9
Rows2
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -20°C~70°C |
| Package | Box |
| Shell Size, Connector Layout | 1 (DE, E) |
| Other | |
| Backset Spacing | - |
| Base Product Number | - |
| Color | Gray |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | - |
| Contact Finish Thickness | - |
| Contact Form | - |
| Contact Material | - |
| Contact Type | Signal |
| Dielectric Material | Plastic |
| Features | Backshell |
| Flange Feature | Cable Side, Male Jackscrew (4-40) |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-1 |
| Mfr | TE Connectivity Erni |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Primary Material | - |
| Product Status | Active |
| Series | - |
| Shell Material, Finish | - |
| Termination | Screw |
| Wire Gauge | - |
