WeidmüllerGermany

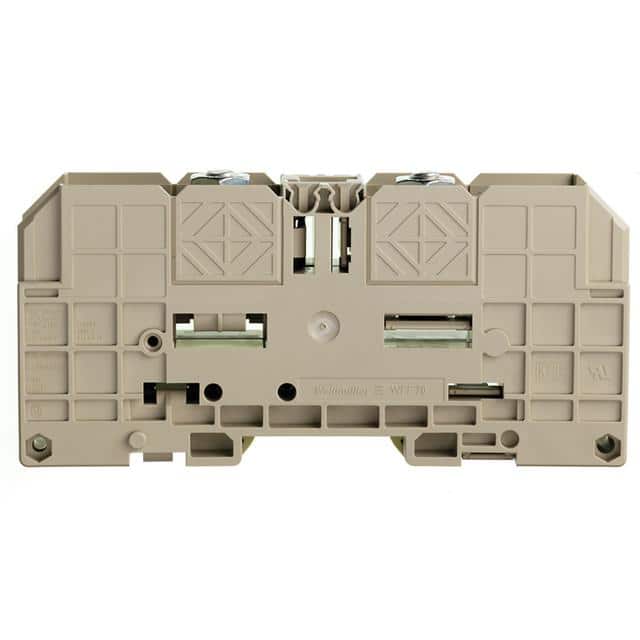

TERM BLK POST DUAL 2POS 32.0MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 192 A |
| Current - UL | 175 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 1 kV |
| Environment and package | |
| Height (Max) | 2.520" (64.00mm) |
| Mounting Type | DIN Rail |
| Operating Temperature | -50°C~120°C |
| Package | Bulk |
| Other | |
| Features | - |
| Housing Color | Beige |
| Length | 5.197" (132.00mm) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Product Status | Active |
| Series | WFF |
| Stripping Length | - |
| Terminal - Width | 32.0mm |
| Termination Style | Stud |
| Type | Post - Dual |
| Wire Gauge or Range - AWG | 2/0-14 AWG |
| Wire Gauge or Range - mm² | 2.5-95mm² |
Documents
No documents are linked to this part yet.
