API Delevan Inc.United States
FIXED IND 3.9UH 263MA 1 OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance3.9 µH
Rated current263 mAMax
DC resistance1 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 263 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 80MHz |
| Inductance Frequency - Test | 7.9 MHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Axial |

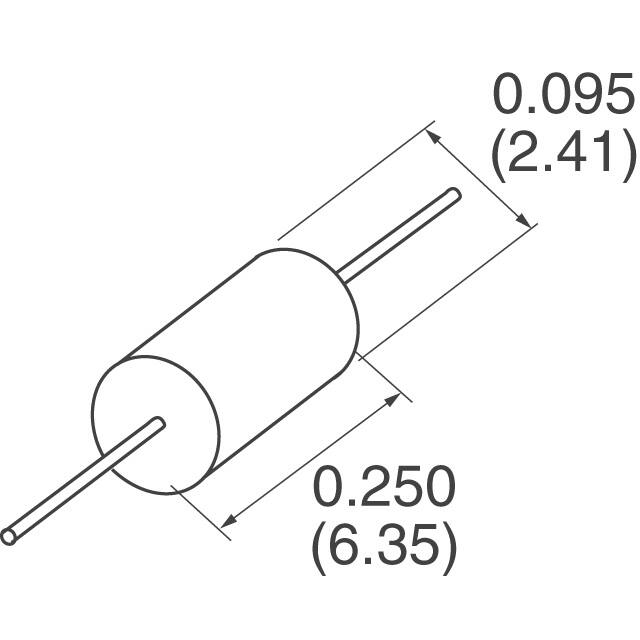

| Size / Dimension | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 1Ohm Max |
| Inductance | 3.9 µH |
| Material - Core | Iron |
| Mfr | API Delevan Inc. |
| Product Status | Active |
| Q @ Freq | 45 @ 7.9MHz |
| Ratings | - |
| Series | 1025 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Molded |
