API Delevan Inc.United States
FIXED IND 470NH 660MA 350MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance470 nH
Rated current660 mAMax
DC resistance350 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 660 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 330MHz |
| Inductance Frequency - Test | 25 MHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | Axial |

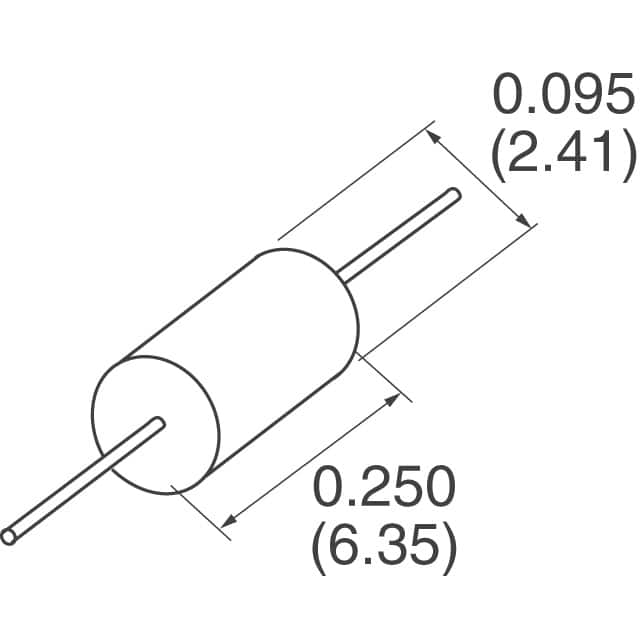

| Size / Dimension | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 350mOhm Max |
| Inductance | 470 nH |
| Material - Core | Phenolic |
| Mfr | API Delevan Inc. |
| Product Status | Active |
| Q @ Freq | 30 @ 25MHz |
| Ratings | - |
| Series | Military, MIL-PRF-M15305, MS75083 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | - |
