WeidmüllerGermany

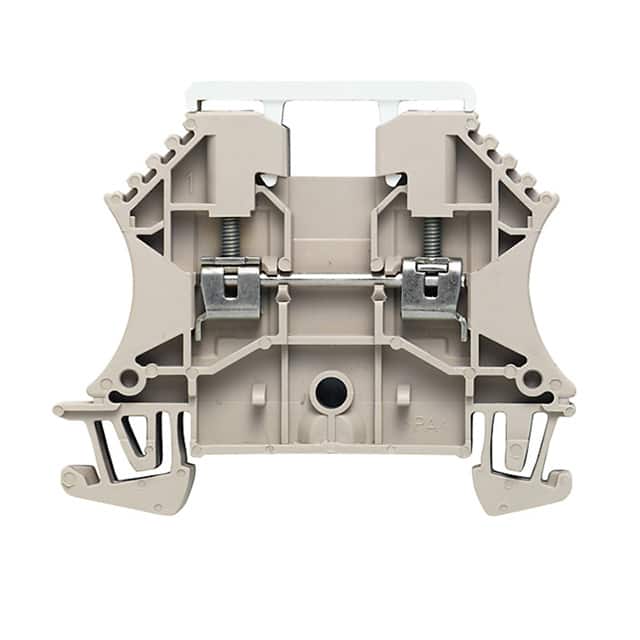

CONN TERM BLK FEED THRU 12-26AWG
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - IEC | - |
| Voltage - UL | - |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | Beige |
| Disconnect Type | - |
| Features | Thermocouple, Cu-CuNi |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Product Status | Active |
| Series | W |
| Stripping Length | 10mm |
| Terminal - Width | 10.2mm |
| Termination Style | Screw |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.5-2.5mm² |
