AmphenolUnited States

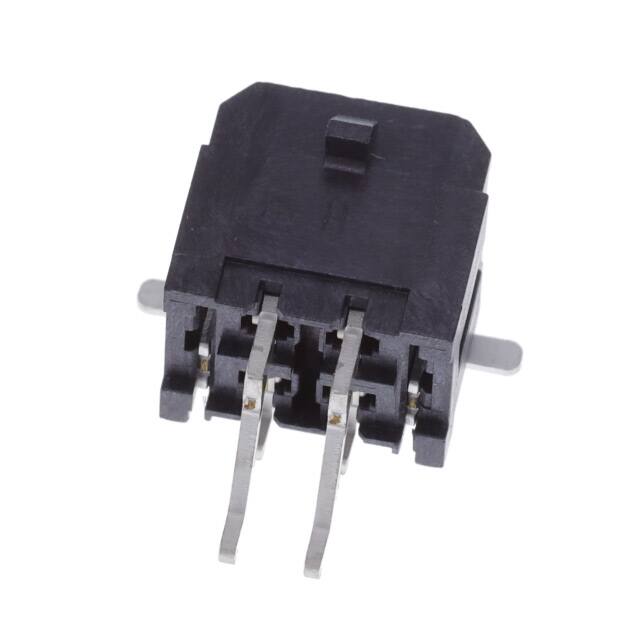

CONN HEADER SMD R/A 4POS 3MM
All alternatives
View full reportTechnical parameters
Key specs
Positions4
Rows2
Pitch3 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC/DC |
| Environment and package | |
| Insulation Height | 0.290" (7.37mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Applications | General Purpose, Industrial, Military, Telecommunications |
| Base Product Number | 10137924 |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.118" (3.00mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Series | Minitek® Pwr 3.0 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
