Integrated Power DesignsUnited States

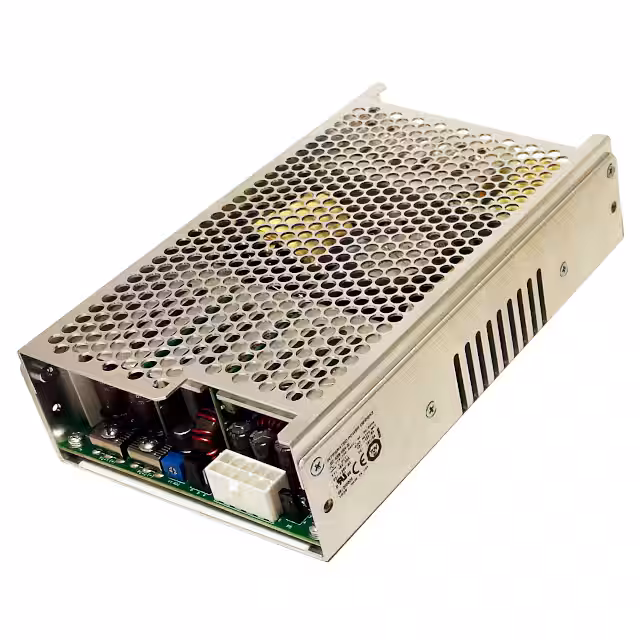

AC/DC CONVERTER 5V 15V -12V 400W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage5 V
Output current50 AMax
Power400 WMax
Outputs3
| Power | |
|---|---|
| Current - Output 1 | 50 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 5 A |
| Power (Watts) | 400W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | -12V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 7.10" L x 4.18" W x 1.50" H (180.3mm x 106.2mm x 38.0mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, TUV, UKCA |
| Base Product Number | 101147502 |
| Efficiency | 87% |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mfr | Integrated Power Designs |
| Minimum Load Required | - |
| Number of Outputs | 3 |
| Product Status | Active |
| Series | NXT-400 (400W) |
| Standard Number | 60601-1; 62368-1 |
| Type | Enclosed |
