Integrated Power DesignsUnited States

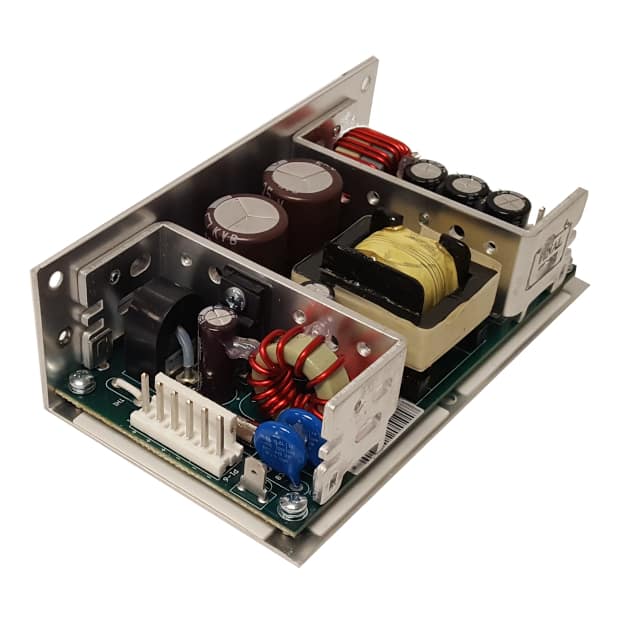

DC/DC CONVERTER +/-12V 80W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage9 ~ 18 V
Output voltage12 V
Output current3.5 AMax
Power80 WMax
| Power | |
|---|---|
| Current - Output (Max) | 3.5A, 3.5A |
| Power (Watts) | 80W |
| Voltage - Input (Max) | 18V |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.70" L x 2.70" W x 1.48" H (119.4mm x 68.9mm x 37.6mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, TUV, UKCA |
| Base Product Number | 1011531 |
| Efficiency | 82% |
| Mfr | Integrated Power Designs |
| Number of Outputs | 2 |
| Product Status | Active |
| Series | DC1-80 (80W) |
| Standard Number | 60601-1; 62368-1 |
| Type | Chassis |
