Integrated Power DesignsUnited States

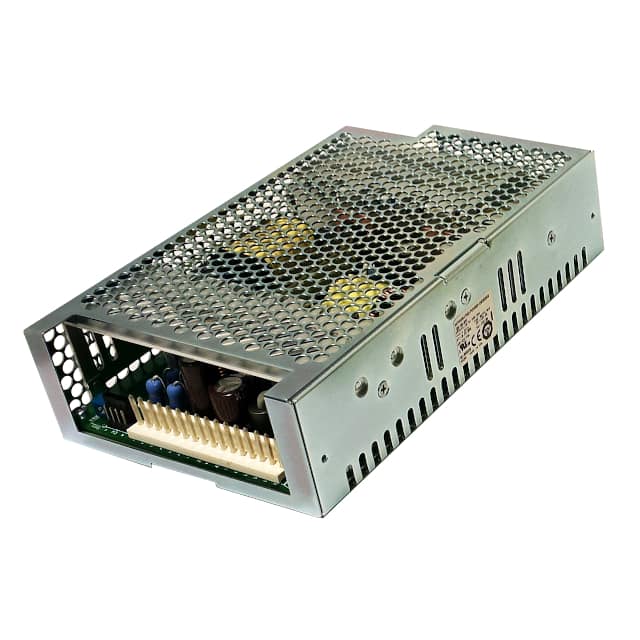

DC/DC CNVRTR 3.3V 5V +/-12V 164W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 36 V
Output voltage3.3 V
Output current20 AMax
Power164 WMax
| Power | |
|---|---|
| Current - Output (Max) | 20A, 10A, 2A, 2A |
| Power (Watts) | 164W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cURus, TUV, UKCA |
| Base Product Number | 1010746 |
| Efficiency | 84% |
| Mfr | Integrated Power Designs |
| Number of Outputs | 4 |
| Product Status | Active |
| Series | DC2-185 (185W) |
| Standard Number | 60601-1; 62368-1 |
| Type | Enclosed |
