Integrated Power DesignsUnited States

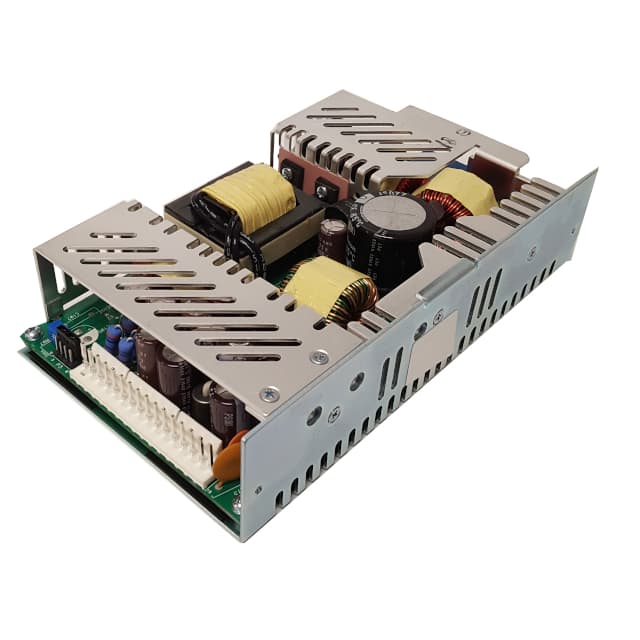

AC/DC CONVERTER +/-12V 185W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage12 V
Output current10 AMax
Power185 WMax
Outputs2
| Power | |
|---|---|
| Current - Output 1 | 10 A |
| Current - Output 2 | 6 A |
| Power (Watts) | 185W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) |
| Other | |
| Applications | Industrial, ITE (Commercial), Laboratory, Medical |
| Approval Agency | CE, cURus, TUV, UKCA |
| Base Product Number | 1010572 |
| Efficiency | 82% |
| Features | Adjustable Output, Remote Sense, Universal Input |
| Mfr | Integrated Power Designs |
| Number of Outputs | 2 |
| Product Status | Active |
| Series | REL-185 (185W) |
| Standard Number | 60601-1; 62368-1 |
| Type | Chassis |
