API Delevan Inc.United States

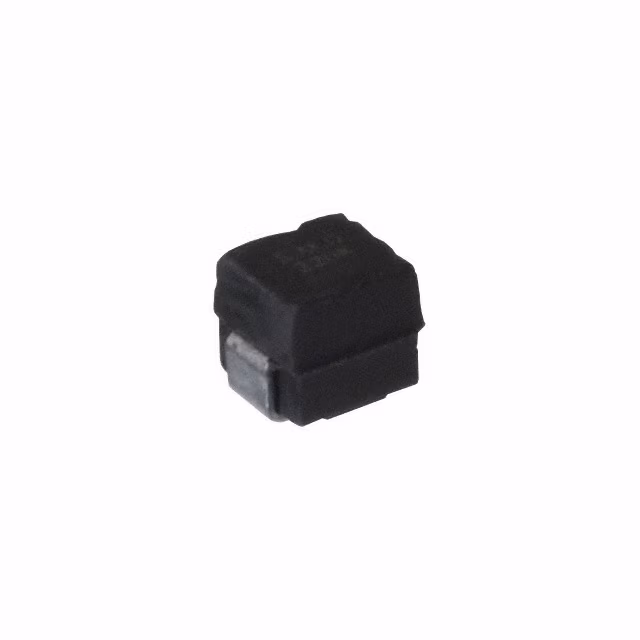

FIXED IND 120NH 1.225A 100 MOHM
All alternatives
View full reportTechnical parameters
Key specs
Inductance120 nH
Rated current1.225 AMax
DC resistance100 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.225 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 750MHz |
| Inductance Frequency - Test | 25 MHz |
| Environment and package | |
| Height - Seated (Max) | 0.095" (2.41mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | Nonstandard |

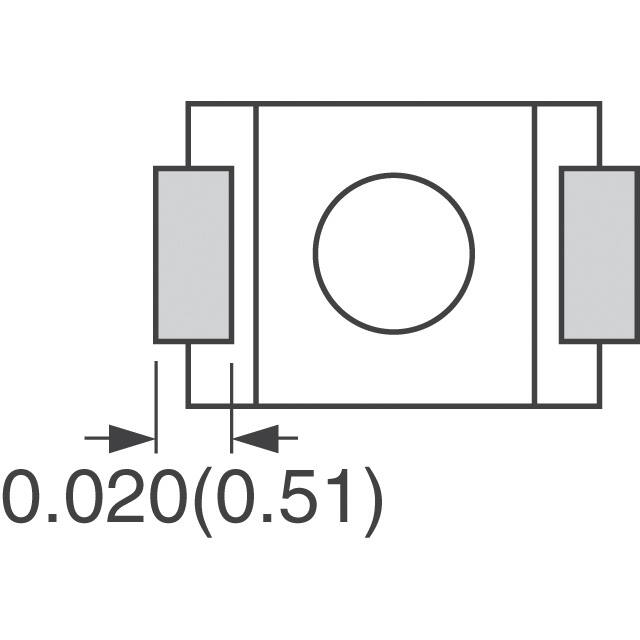

| Size / Dimension | 0.105" L x 0.095" W (2.66mm x 2.41mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 100mOhm Max |
| Inductance | 120 nH |
| Material - Core | Ferrite |
| Mfr | API Delevan Inc. |
| Product Status | Active |
| Q @ Freq | 40 @ 25MHz |
| Ratings | - |
| Series | 1008 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | - |
