Ethertronics/AVXUnited States

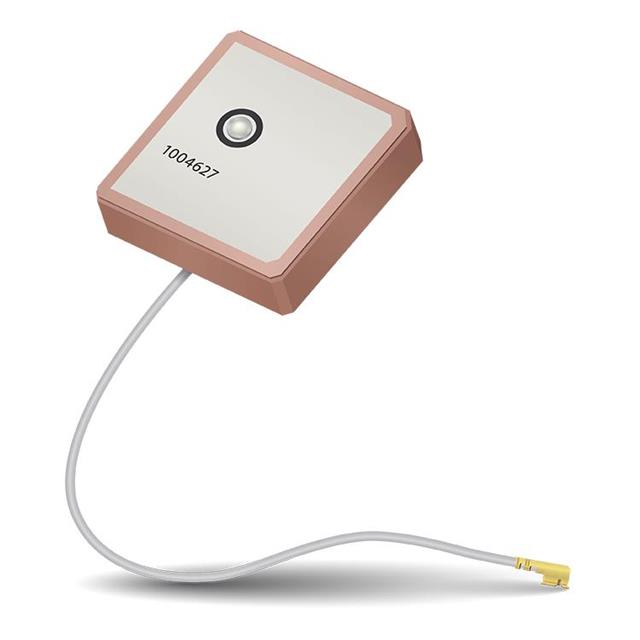

ANTENNA ASSY, GPS 25X25X5
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | - |
| Gain | 3.7dBi, 3dBi |
| Environment and package | |
| Height (Max) | 0.209" (5.30mm) |
| Mounting Type | Adhesive |
| Package | Tray |
| Other | |
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GPS |
| Features | Cable - 72mm |
| Ingress Protection | - |
| Mfr | Ethertronics/AVX |
| Number of Bands | 2 |
| Product Status | Active |
| Return Loss | - |
| RF Family/Standard | Navigation |
| Series | - |
| Termination | IPEX MHF3 |
| VSWR | 2, 3 |
Documents
No documents are linked to this part yet.
