View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 1.575GHz |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.572GHz ~ 1.578GHz |
| Gain | 5.3dBic |
| Environment and package | |
| Height (Max) | 0.177" (4.50mm) |
| Mounting Type | Adhesive |
| Package | Tray |
| Other | |

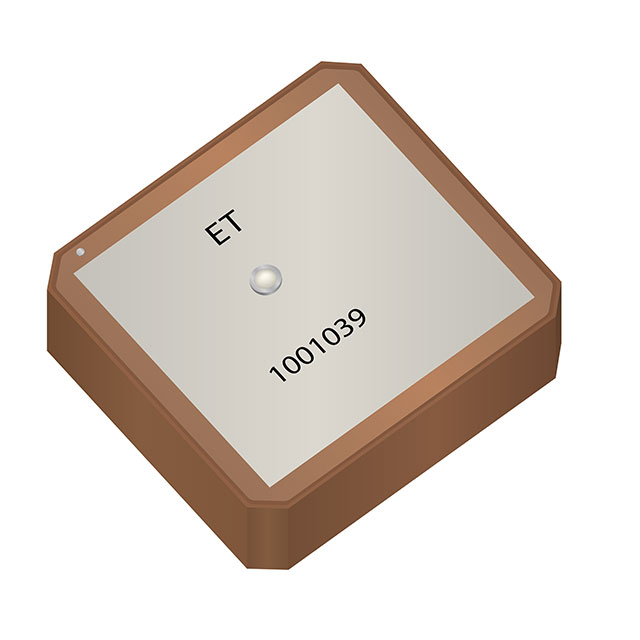

| Antenna Type | Ceramic Patch |
| Applications | GPS |
| Features | - |
| Ingress Protection | - |
| Mfr | Ethertronics/AVX |
| Number of Bands | 1 |
| Product Status | Active |
| Return Loss | -20dB |
| RF Family/Standard | Navigation |
| Series | - |
| Termination | Pin |
| VSWR | - |
