National SemiconductorUnited States

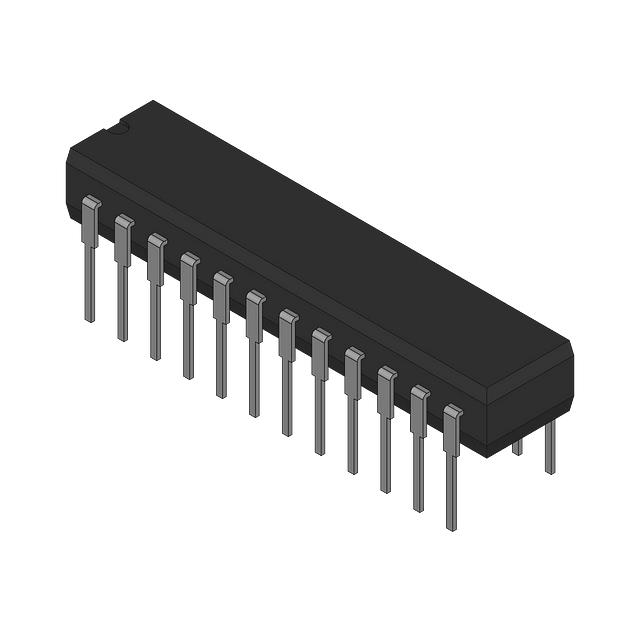

OR/NOR GATE, 100K SERIES
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | - |
| Voltage - Supply | -4.2V ~ -5.7V |
| Environment and package | |
| Grade | - |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 85°C |
| Package | Bulk |
| Package / Case | 24-CDIP |
| Qualification | - |
| Supplier Device Package | 24-CDIP |
| Other | |
| Base Product Number | 100102 |
| Logic Type | NOR/OR Gate |
| Mfr | National Semiconductor |
| Number of Circuits | 5 |
| Number of Inputs | 10 Input (2, 2, 2, 2, 2) |
| Output Type | Differential |
| Product Status | Active |
| Schmitt Trigger Input | No |
| Series | F100102 |
