MolexUnited States

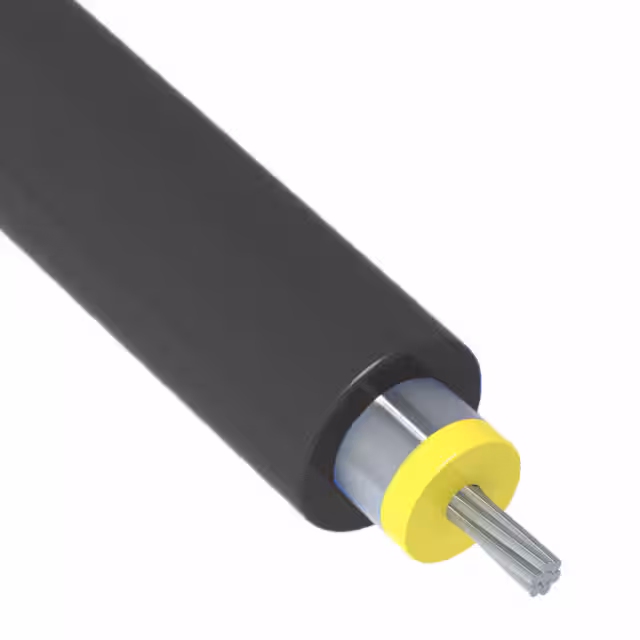

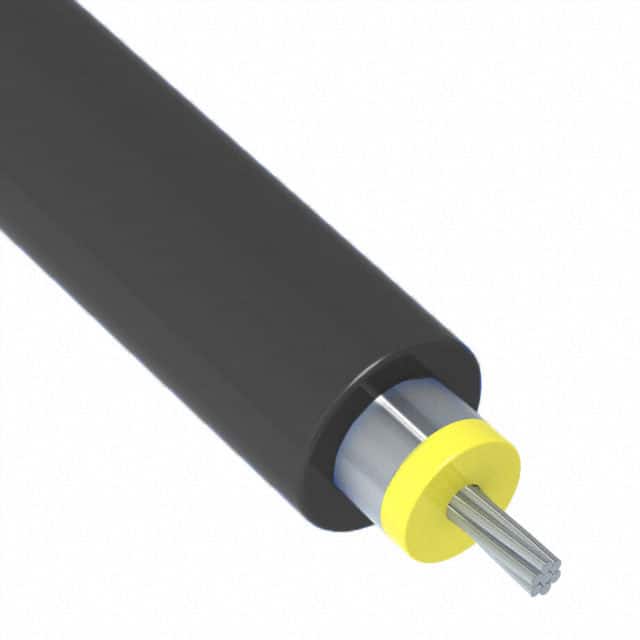

047 MICROWAVE COAX 28 AWG
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Impedance | 50 Ohms |
| Environment and package | |
| Operating Temperature | - |
| Package | Spool |
| Other | |
| Base Product Number | 100054 |
| Cable Group | - |
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | - |
| Dielectric Diameter | - |
| Dielectric Material | - |
| Features | - |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.056" (1.42mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Length | - |
| Mfr | Molex |
| Product Status | Active |
| Series | Temp-Flex 100054 |
| Shield Coverage | 100%, 90% |
| Shield Material | Copper, Silver Coated |
| Shield Type | Foil, Braid |
| Usage | - |
| VoP, Velocity of Propagation | 87 |
| Wire Gauge | 28 AWG |
Documents
No documents are linked to this part yet.
