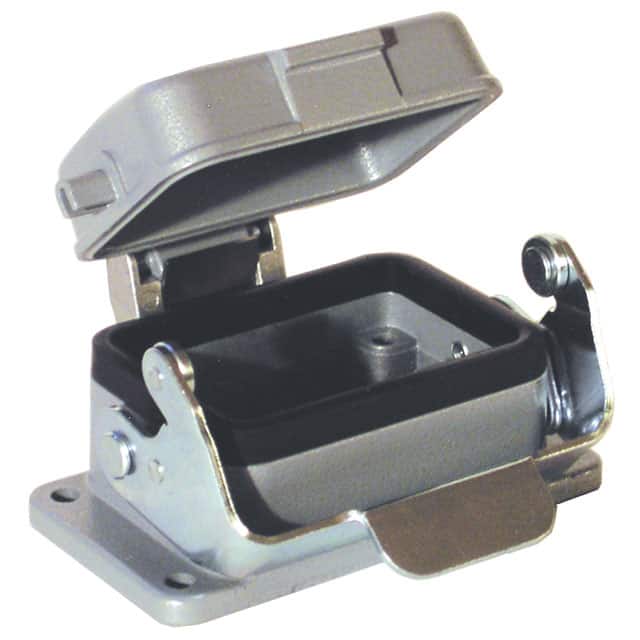

100040C0
LAPPGermany

100040C0

ActiveHeavy Duty Connector Housings, Hoods, Bases

CONN BASE HB6 PNL MNT W/DC

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Operating Temperature-40°C~125°C
PackageBulk
SizeHB6
Size / Dimension3.150" L x 1.693" W x 1.094" H (80.00mm x 43.00mm x 27.80mm)
Thread Size-
Other
Base Product Number100040
Connector TypeBase - Panel Mount
FeaturesCover
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialAluminum Alloy
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Base Bottom
MfrLAPP
Product StatusActive
SeriesEPIC® HB
StyleBottom Entry

Documents

No documents are linked to this part yet.
