WeidmüllerGermany
TERM BLOCK PLUG 4POS 5.08MM
All alternatives
View full reportTechnical parameters
Key specs
Positions4
Pitch5.08 mm
| Power | |
|---|---|
| Current - IEC | 24A |
| Current - UL | 18.5 A |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
| Environment and package | |

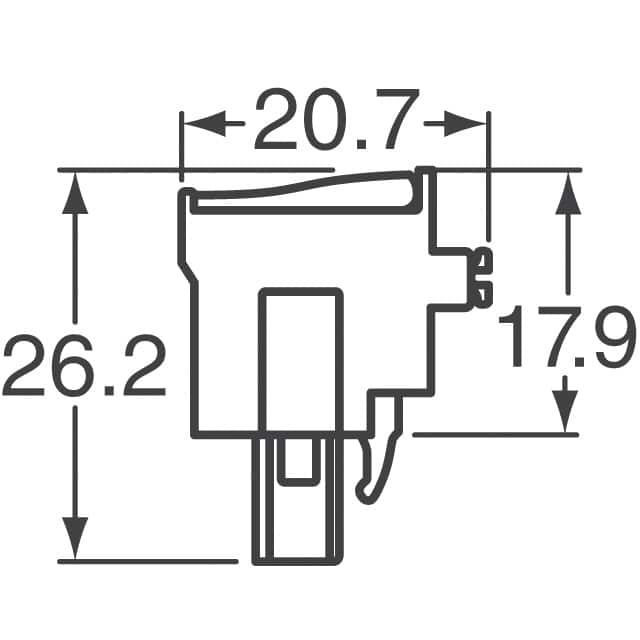

| Insulation Height | 0.815" (20.70mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -50°C~100°C |
| Package | Box |
| Screw Size | - |
| Other | |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Mating Flange, Retention Latches (Wire Side) |
| Header Orientation | - |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.200" (5.08mm) |
| Plug Wire Entry | 90° |
| Positions Per Level | 4 |
| Product Status | Active |
| Series | Omnimate BL |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Torque - Screw | - |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Strip Length | - |
