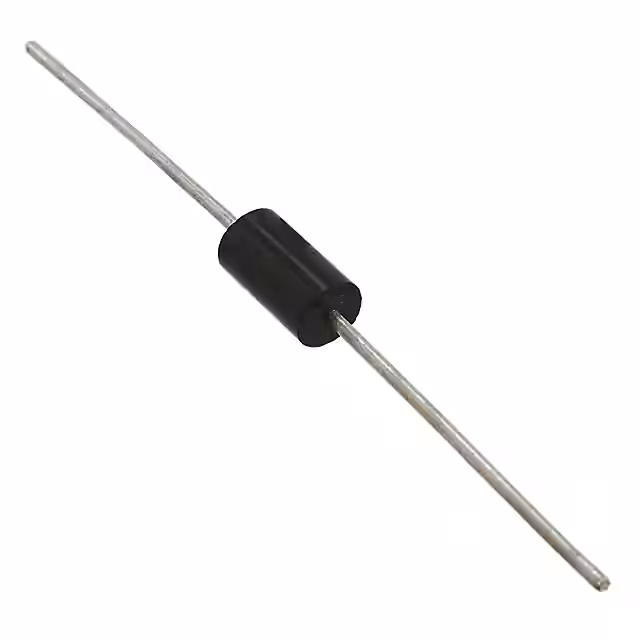

TVS DIODE 342VWM 548VC DO201AE
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage342 V
Breakdown voltage380 V
Clamping voltage548 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 2.7A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 380V |
| Voltage - Clamping (Max) @ Ipp | 548V |
| Voltage - Reverse Standoff (Typ) | 342V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Package / Case | DO-201AE, Axial |
| Supplier Device Package | DO-201AE |
| Other | |
| Applications | General Purpose |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Product Status | Active |
| Series | 1.5KE |
| Type | Zener |
