Taiwan Semiconductor CorporationTaiwan, China

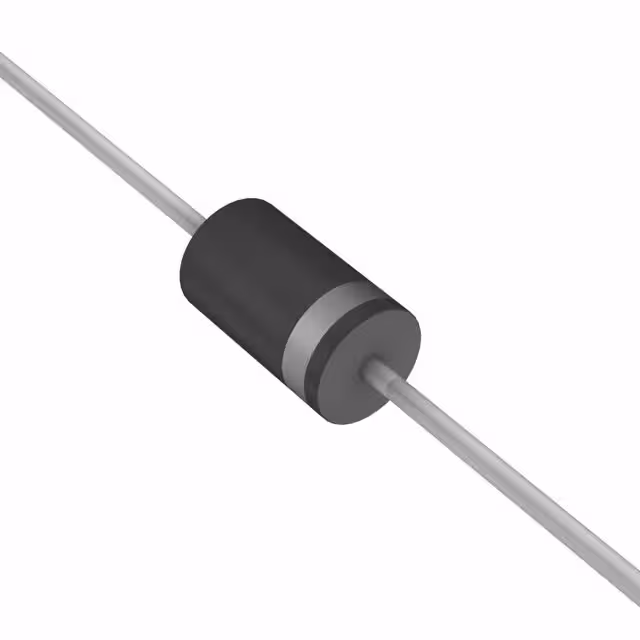

TVS DIODE 300VWM 482VC DO201
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage300 V
Breakdown voltage333 V
Clamping voltage482 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 3.2A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 333V |
| Voltage - Clamping (Max) @ Ipp | 482V |
| Voltage - Reverse Standoff (Typ) | 300V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Other | |
| Applications | Automotive |
| Base Product Number | 1.5KE350 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | Automotive, AEC-Q101, 1.5KE |
| Type | Zener |
