Diodes IncorporatedUnited States

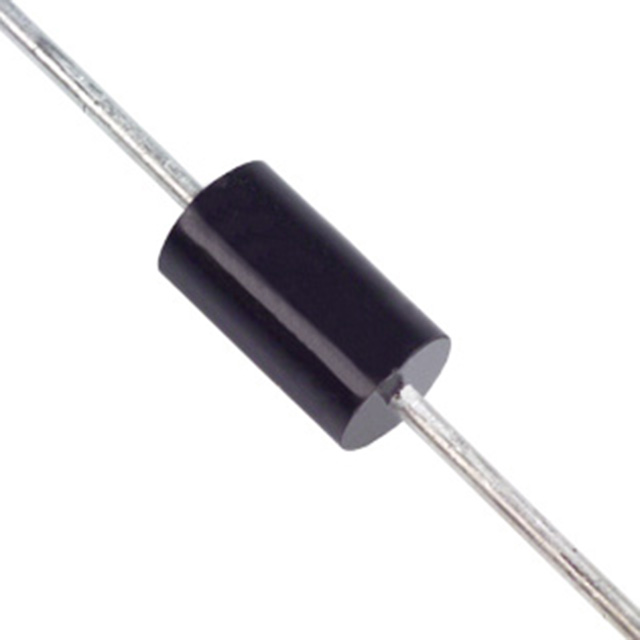

TVS DIODE 300VWM 482VC DO201
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage300 V
Breakdown voltage332 V
Clamping voltage482 VMax
Peak pulse power1.5 kW
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 4A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Voltage - Breakdown (Min) | 332V |
| Voltage - Clamping (Max) @ Ipp | 482V |
| Voltage - Reverse Standoff (Typ) | 300V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package | Bulk |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Other | |
| Applications | General Purpose |
| Base Product Number | 1.5KE350 |
| Mfr | Diodes Incorporated |
| Product Status | Obsolete |
| Series | - |
| Type | Zener |
