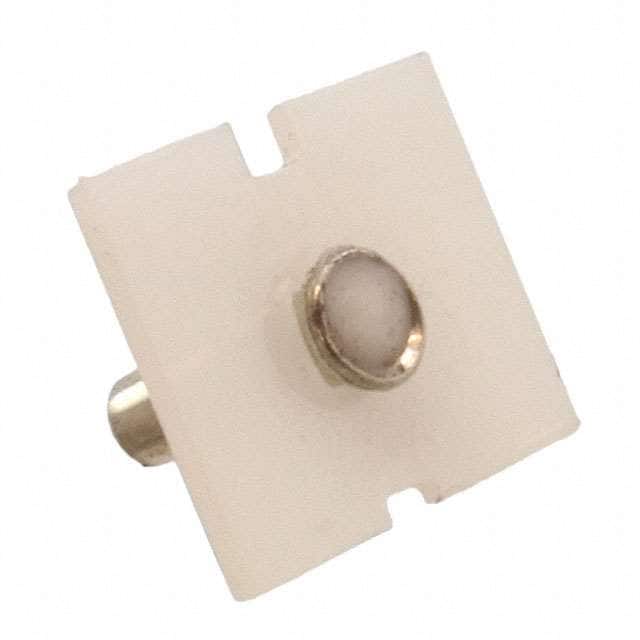

1-645955-1
TE ConnectivitySwitzerland

1-645955-1

ObsoletePC Pin Receptacles, Socket Connectors

CONN PIN RCPT .014-.026 SOLDER

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Accepts Square Pin Size-
Mounting Hole Diameter0.052" (1.32mm)
Operating Temperature-65°C~125°C
PackageTape & Reel (TR); Cut Tape (CT)
Other
Accepts Pin Diameter0.014" ~ 0.026" (0.36mm ~ 0.66mm)
Base Product Number645955
Board Thickness0.031" ~ 0.093" (0.79mm ~ 2.36mm)
Contact FinishTin
Contact Finish Thickness100.0µin (2.54µm)
Contact MaterialBeryllium Copper
Features-
Flange Diameter0.075" (1.91mm)
Insertion Force-
Length - Overall0.184" (4.67mm)
MfrTE Connectivity AMP Connectors
Pin Hole Diameter-
Product StatusObsolete
Series2
Socket Depth0.100" ~ 0.170" (2.54mm ~ 4.32mm)
Tail Diameter-
Tail TypeNo Tail
TerminationSolder
