Key specs
Positions78
Rows4
GenderMale
Current rating2 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Shell Size, Connector Layout | 5 (DD, D) High Density |
| Other | |
| Backset Spacing | - |
| Color | - |

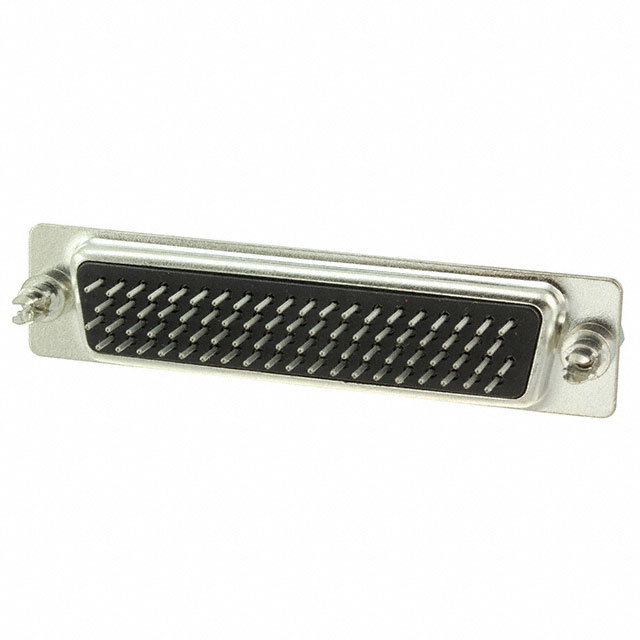

| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Features | Board Lock, Grounding Indents |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | HARTING |
| Number of Positions | 78 |
| Number of Rows | 4 |
| Packaging | Bulk |
| Part Status | Active |
| Series | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Termination | Solder |
| Wire Gauge | - |
