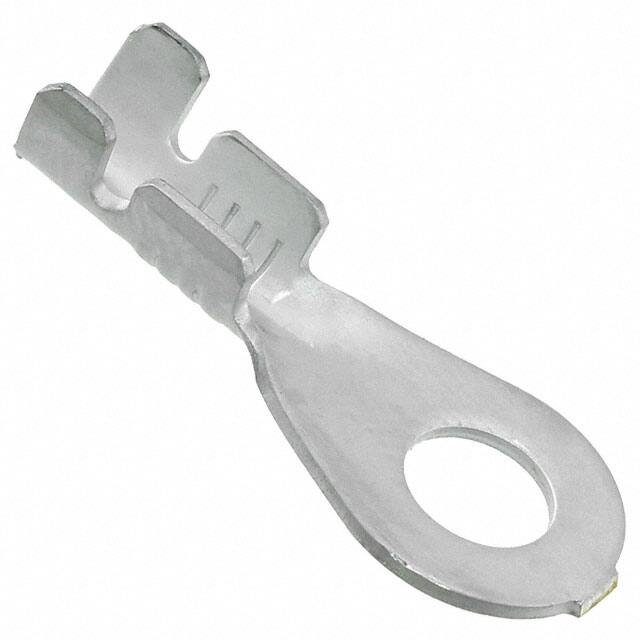

CONN RING CIRC 14-24AWG #5 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Stud/Tab Size | 5 Stud |
| Other | |
| Base Product Number | 094511 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | - |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.087" ~ 0.157" (2.21mm ~ 3.99mm) |
| Length - Overall | 0.787" (20.00mm) |
| Material - Insulation | - |
| Mfr | Molex |
| Product Status | Obsolete |
| Series | 94511 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.024" (0.61mm) |
| Width - Outer Edges | 0.342" (8.69mm) |
| Wire Gauge | 14-24 AWG |
