MolexUnited States

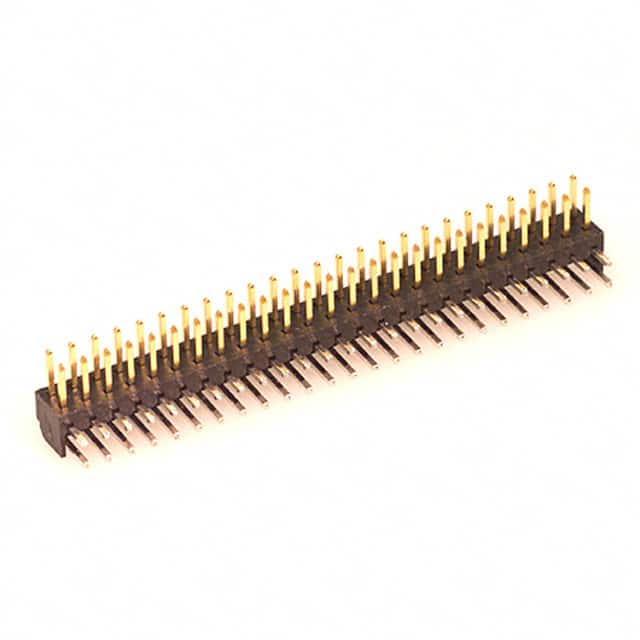

CONN HEADER R/A 50POS 2MM
All alternatives
View full reportTechnical parameters
Key specs
Positions50
Rows2
Pitch2 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.169" (4.30mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | - |
| Package | Tube |
| Other | |
| Applications | Automotive, General Purpose, Telecommunications |
| Base Product Number | 087049 |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.102" (2.60mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.079" (2.00mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Series | Milli-Grid 87049 |
| Shrouding | Unshrouded |
| Style | Board to Board |
| Termination | Solder |
