087.42.1810.071
IMS Connector SystemsGermany

087.42.1810.071

ActiveCoaxial Connector (RF) Assemblies

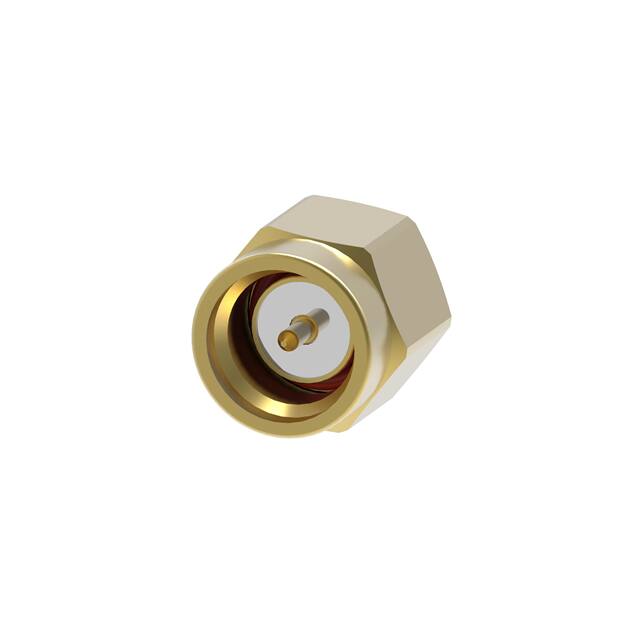

SMA - CABLE MOUNT PLUG

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMA
GenderMale
Impedance50 Ω
Max frequency18 GHzMax
Power
Voltage Rating500 V
AC and DC characteristics
Frequency - Max18 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-55°C~125°C
PackageBulk
Other
Base Product Number087.42.1
Body FinishGold
Body MaterialBrass
Cable GroupRG-402 (.141" Semi Rigid)
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMA
Connector TypePlug, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorGold
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrIMS Connector Systems
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
