DOWO(东沃)China

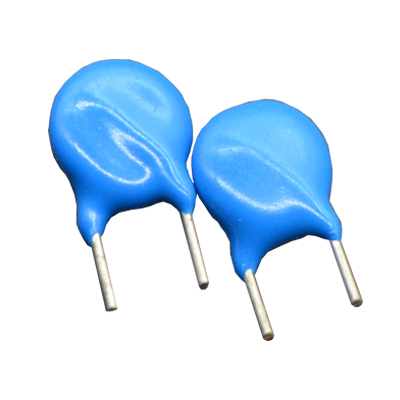

07D121K/07D121KJ — 压敏电阻（东沃电子 DOWOSEMI）
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Rated Power(W) | 0.25 |
| Environment and package | |
| 封装 | 07D |
| Other | |
| 10/1000μs High Surge (J) | 12.0 |
| 10/1000μs Standard (J) | 7.8 |
| @1KHzPF | 420 |
| High Surge I(A) | 1750 |
| IP (A) | 10 |
| Standard I(A) | 1200 |
| V1mA (V) | 120(108-132) |
| VAC (V) | 75 |
| VC(V) | 200 |
| VDC (V) | 100 |
