KYOCERA AVXJapan

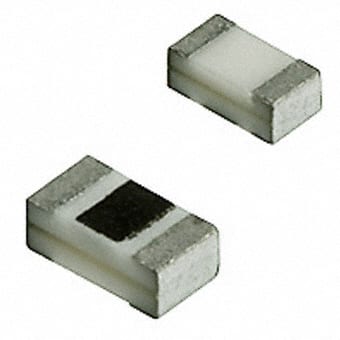

CAP THIN FILM 0.8PF 100V 0603
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | 100 V |
| Environment and package | |
| Height - Seated (Max) | 0.029" (0.73mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Other | |
| Capacitance | 0.8 pF |
| Features | RF, High Q, Low Loss |
| Mfr | KYOCERA AVX |
| Product Status | Obsolete |
| Series | Accu-F® |
| Tolerance | ±0.1pF |
