MolexUnited States

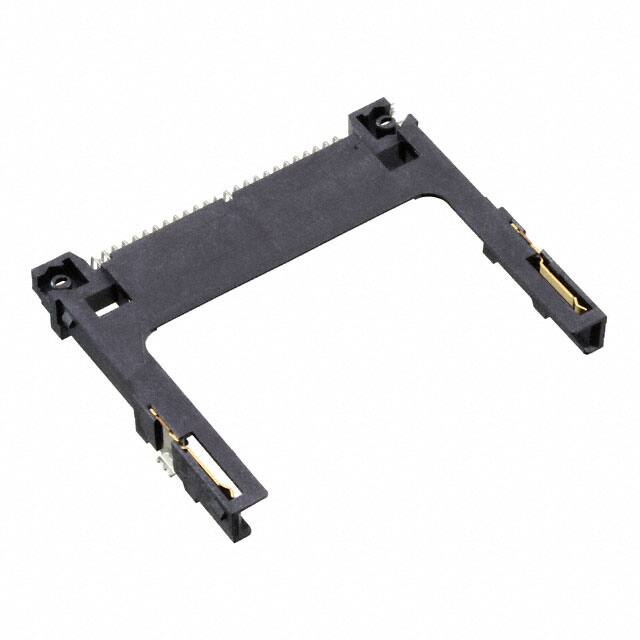

CONN COMPACT FLASH CARD R/A SMD
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|

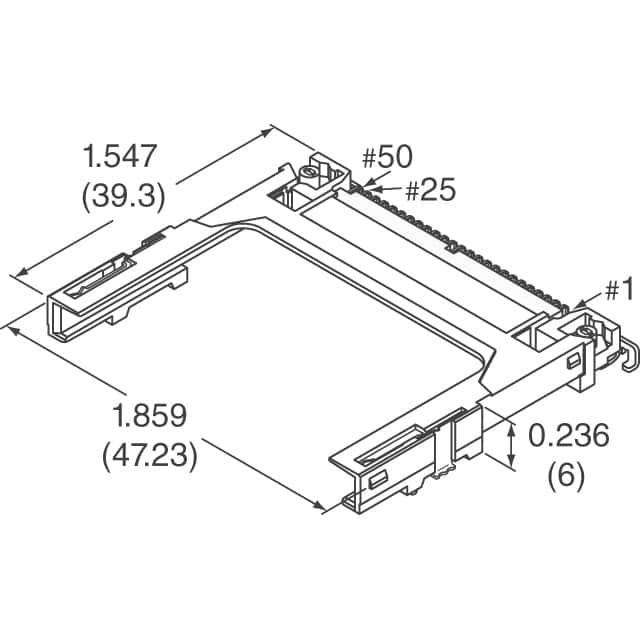

| Height Above Board | 0.236" (6.00mm) |
| Mounting Feature | Reverse - Bottom |
| Mounting Type | Surface Mount, Right Angle |
| Package | Tray |
| Other | |
| Base Product Number | 055359 |
| Card Type | CompactFlash® - Type I, II |
| Connector Type | Connector |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Ejector Side | - |
| Features | Board Guide, Card Guide |
| Insertion, Removal Method | Push In, Pull Out |
| Mfr | Molex |
| Number of Positions | 50 |
| Product Status | Obsolete |
| Series | 55359 |
