MolexUnited States

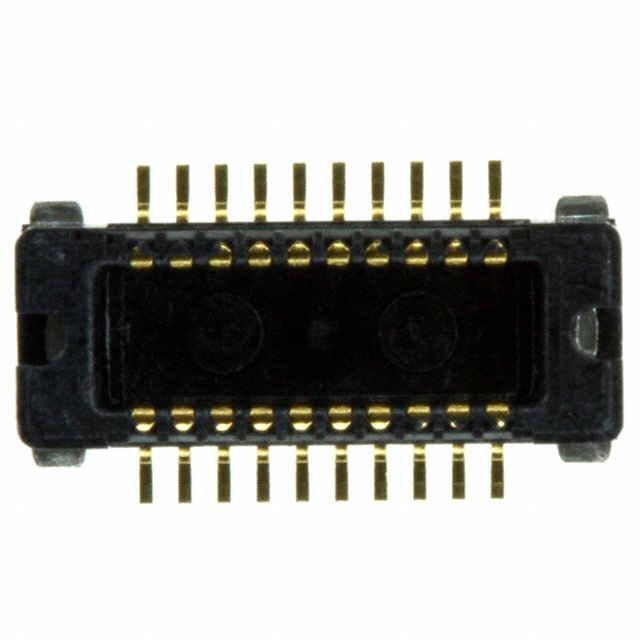

CONN PLUG 20POS SMD GOLD
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Rows2
Pitch500 µm
GenderMale
| Environment and package | |
|---|---|
| Height Above Board | 0.063" (1.60mm) |
| Mated Stacking Heights | 2mm |
| Mounting Type | Surface Mount |
| Package | Bulk |
| Other | |
| Base Product Number | 055201 |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Features | Solder Retention |
| Mfr | Molex |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch | 0.020" (0.50mm) |
| Product Status | Obsolete |
| Series | SlimStack 55201 |
