0484080003
MolexUnited States

0484080003

ActiveUSB, DVI, HDMI Connector Assemblies

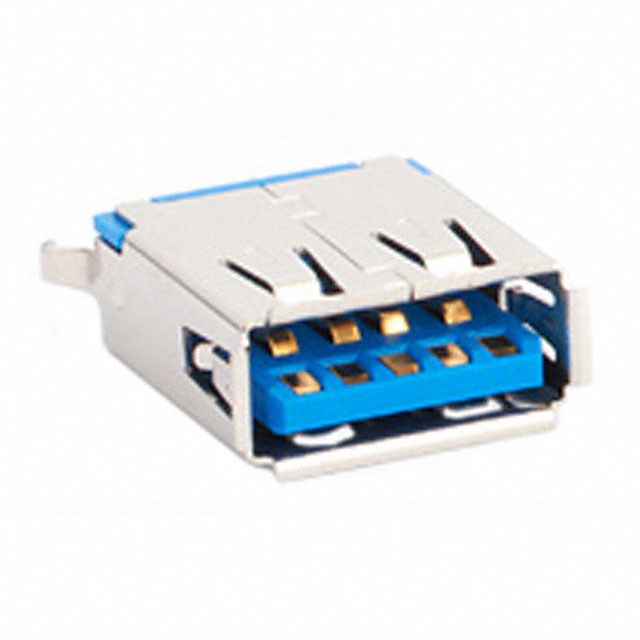

CONN RCPT USB3.0 TYPEA 9POS VERT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions9
GenderFemale
Current rating1.8 AMax
Power
Current Rating (Amps)0.25A, 1.8A
Voltage - Rated30VAC/DC
Environment and package
Mounting FeatureVertical
Mounting TypeThrough Hole
Operating Temperature-20°C ~ 85°C
PackageTray
Other
Base Product Number048408
Connector TypeUSB-A (USB TYPE-A)
Contact FinishGold
FeaturesBoard Lock
GenderReceptacle
Ingress Protection-
Insulation ColorBlue
Material Flammability RatingUL94 HB
Mating Cycles5000
MfrMolex
Number of Contacts9
Number of Ports1
Product StatusActive
Series48408
Shell/Shielding MaterialSteel, Stainless
ShieldingShielded
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
TerminationSolder

Documents

No documents are linked to this part yet.
