KYOCERA AVXJapan

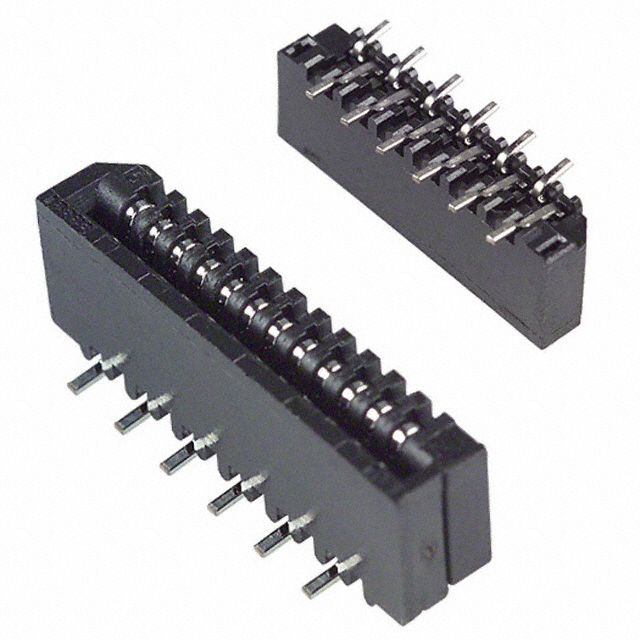

046232112015800
FFC, FPC (Flat Flexible) Connector AssembliesCONN FFC FPC VERT 12POS 1MM SMD
All alternatives
View full reportTechnical parameters
Key specs
Positions12
Pitch1 mm
Current rating500 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50V |
| Environment and package | |
| Height Above Board | 0.201" (5.10mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 85°C |
| Other | |
| Actuator Color | - |
| Actuator Material | - |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | - |
| Contact Material | Copper Alloy |
| Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | - |
| Housing Material | Plastic |
| Locking Feature | - |
| Manufacturer | KYOCERA AVX |
| Material Flammability Rating | - |
| Mating Cycles | - |
| Number of Positions | 12 |
| Packaging | Tape & Reel (TR) Cut Tape (CT) |
| Part Status | Active |
| Pitch | 0.039" (1.00mm) |
| Series | 6232, Kyocera |
| Termination | Solder |
