MolexUnited States

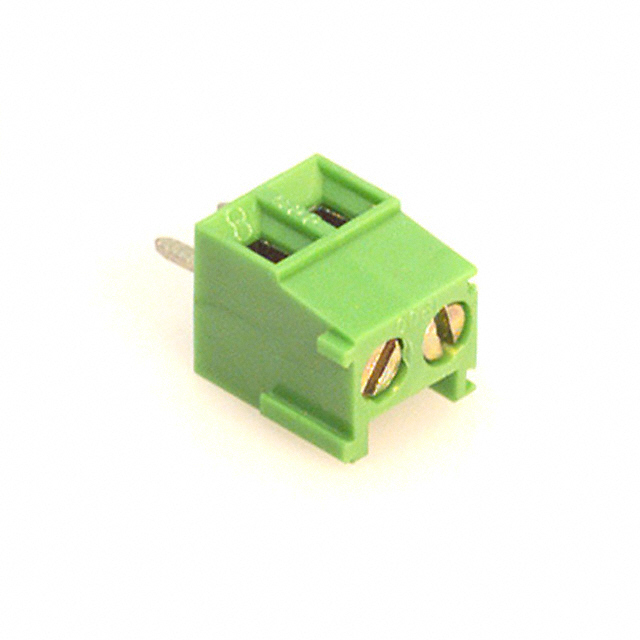

TERM BLK 2POS SIDE ENT 3.5MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Pitch3.5 mm
| Power | |
|---|---|
| Current | 8 A |
| Voltage | 150 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Base Product Number | 039830 |
| Clamp Material - Plating | - |
| Color | Green |
| Contact Material - Plating | - |
| Features | Interlocking (Side) |
| Housing Material | - |
| Mating Orientation | Horizontal with Board |
| Mfr | Molex |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Positions Per Level | 2 |
| Product Status | Obsolete |
| Screw Material - Plating | - |
| Screw Thread | - |
| Series | Eurostyle 39830 |
| Torque - Screw | - |
| Wire Gauge | 16-26 AWG |
| Wire Termination | Screw |
Documents
No documents are linked to this part yet.
