Advanced PhotonixUnited States

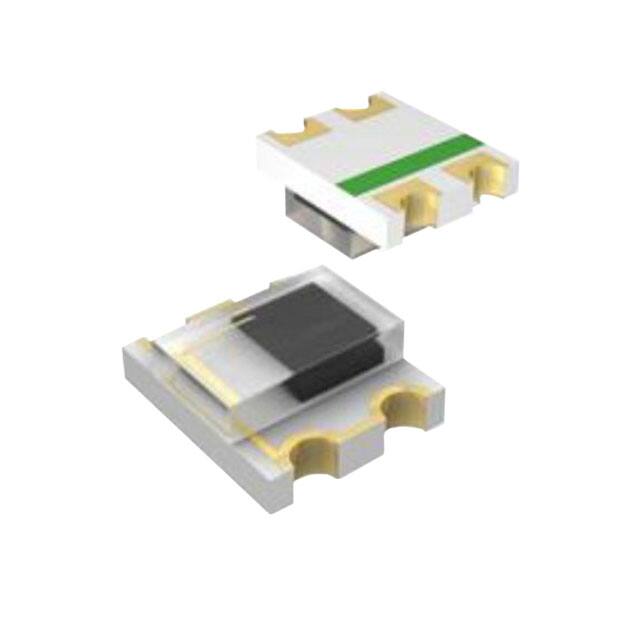

PHOTODIOD 800-1700NM 1.36MM 1210
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Dark (Typ) | 200pA |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~100°C |
| Package | Strip |
| Package / Case | - |
| Other | |
| Active Area | - |
| Base Product Number | 039-151 |
| Color - Enhanced | - |
| Diode Type | - |
| Mfr | Advanced Photonix |
| Product Status | Obsolete |
| Response Time | 2ns |
| Responsivity @ nm | 0.90 A/W @ 1310nm |
| Series | - |
| Spectral Range | 800nm ~ 1700nm |
| Viewing Angle | - |
| Wavelength | - |
