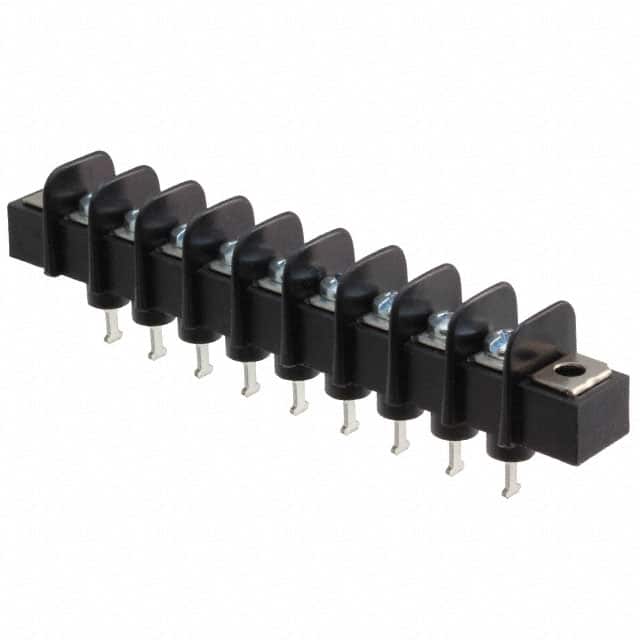

CONN BARRIER STRIP 9CIRC 0.375"
All alternatives
View full reportTechnical parameters
Key specs
Rows1
Pitch9.53 mm
Current rating15 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 15A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Type | Chassis, Panel |
| Operating Temperature | -40°C~100°C |
| Package | Bulk |
| Other | |
| Barrier Type | 2 Wall (Dual) |
| Base Product Number | 038720 |
| Bottom Termination | Solder Turret, Insulated |
| Color | Black |
| Features | Flange |
| Material Flammability Rating | - |
| Material - Insulation | Thermoplastic |
| Mfr | Molex |
| Number of Circuits | 9 |
| Number of Rows | 1 |
| Number of Wire Entries | 9 |
| Pitch | 0.375" (9.53mm) |
| Product Status | Active |
| Series | Beau 38720 |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Wire Gauge | 14-22 AWG |
