MolexUnited States

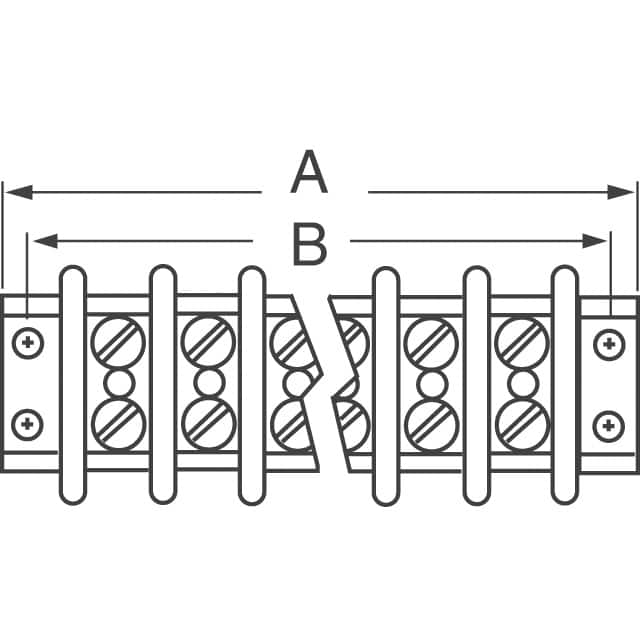

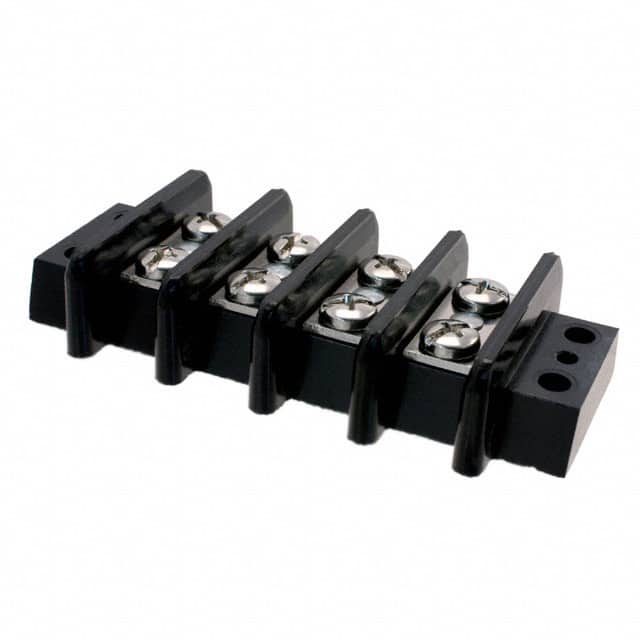

CONN BARRIER STRIP 4CIRC 0.688"
All alternatives
View full reportTechnical parameters
Key specs
Rows2
Pitch17.48 mm
Current rating50 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 50A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Type | Chassis, Panel |
| Operating Temperature | 105°C |
| Package | Bulk |
| Other | |
| Barrier Type | 2 Wall (Dual) |
| Base Product Number | 038280 |
| Bottom Termination | Closed |
| Color | Black |
| Features | Flange |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Phenol Formaldehyde (Phenolic) |
| Mfr | Molex |
| Number of Circuits | 4 |
| Number of Rows | 2 |
| Number of Wire Entries | 8 |
| Pitch | 0.688" (17.48mm) |
| Product Status | Obsolete |
| Series | Beau 38280 |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Brass |
| Top Termination | Screws |
| Wire Gauge | 6 AWG |
Documents
No documents are linked to this part yet.
