Mill-Max Manufacturing Corp.United States

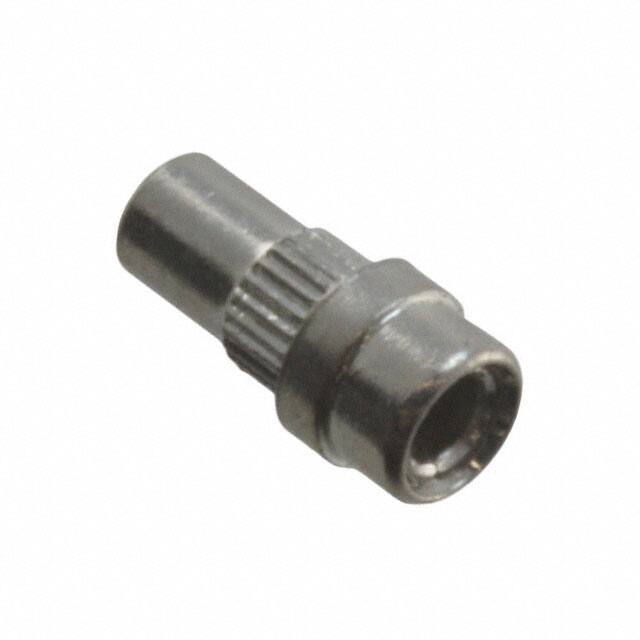

CONN PIN RCPT .032-.046 KNURL
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Accepts Square Pin Size | - |
| Mounting Hole Diameter | 0.078" (1.98mm) |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Other | |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
| Base Product Number | 0357-0 |
| Board Thickness | - |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Material | Beryllium Copper |
| Features | - |
| Flange Diameter | 0.103" (2.62mm) |
| Insertion Force | - |
| Length - Overall | 0.220" (5.59mm) |
| Mfr | Mill-Max Manufacturing Corp. |
| Pin Hole Diameter | 0.064" (1.63mm) |
| Product Status | Active |
| Series | 0357 |
| Socket Depth | 0.195" (4.95mm) |
| Tail Diameter | - |
| Tail Type | No Tail |
| Termination | Press-Fit, Knurled |
