MolexUnited States

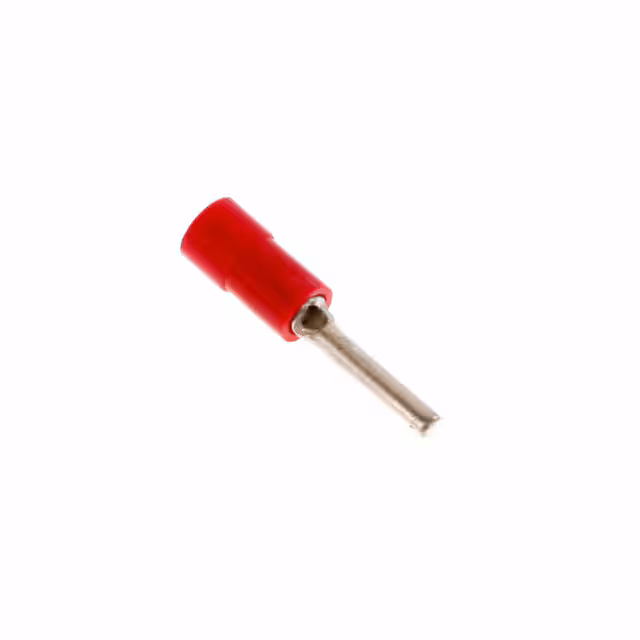

CONN WIRE PIN TERM 18-22AWG
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Base Product Number | 019212 |
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.055" (1.40mm) |
| Diameter - Barrel OD | - |
| Features | - |
| Insulation | Insulated |
| Insulation Diameter | 0.145" (3.68mm) |
| Length - Overall | 0.930" (23.62mm) |
| Length - Pin | 0.390" (9.91mm) |
| Length - Termination | 0.400" (10.16mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mfr | Molex |
| Pin Diameter | Circular - 0.078" (1.98mm) Dia |
| Product Status | Obsolete |
| Series | InsulKrimp |
| Termination | Crimp |
| Wire Gauge | 18-22 AWG |
