Prysmian GroupItaly

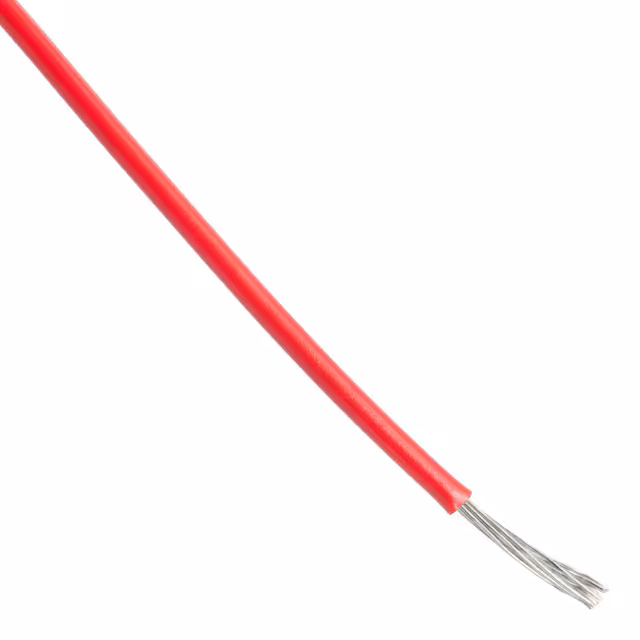

WELD CABLE 1/0AWG 600V RED 250'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Operating Temperature | -40°C~90°C |
| Package | Spool |
| Other | |
| Base Product Number | 01774 |
| Cable Type | Welding |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand | 990/30 |
| Features | - |
| Jacket Color | Red |
| Jacket (Insulation) Diameter | 0.560" (14.22mm) |
| Jacket (Insulation) Material | Ethylene Propylene Terpolymer Rubber (EPDM) |
| Jacket (Insulation) Thickness | - |
| Length | 250.0' (76.2m) |
| Mfr | Prysmian Group |
| Product Status | Obsolete |
| Ratings | ASTM B-172 Class K |
| Series | 1774 |
| Wire Gauge | 1/0 AWG |
