Advanced PhotonixUnited States

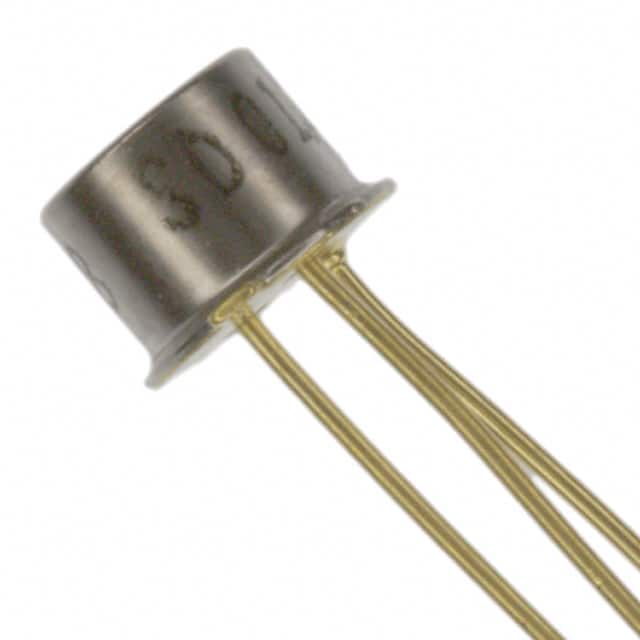

SENSOR PHOTODIODE TO46-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Dark (Typ) | 1nA |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | TO-46-3 Lens Top Metal Can |
| Other | |
| Active Area | 0.30mm Dia |
| Base Product Number | 012-11 |
| Color - Enhanced | - |
| Diode Type | - |
| Mfr | Advanced Photonix |
| Product Status | Obsolete |
| Response Time | 1.15ns |
| Responsivity @ nm | 0.92 A/W @ 1310nm |
| Series | - |
| Spectral Range | 800nm ~ 1700nm |
| Viewing Angle | 88° |
| Wavelength | - |
