Excelitas TechnologiesUnited States

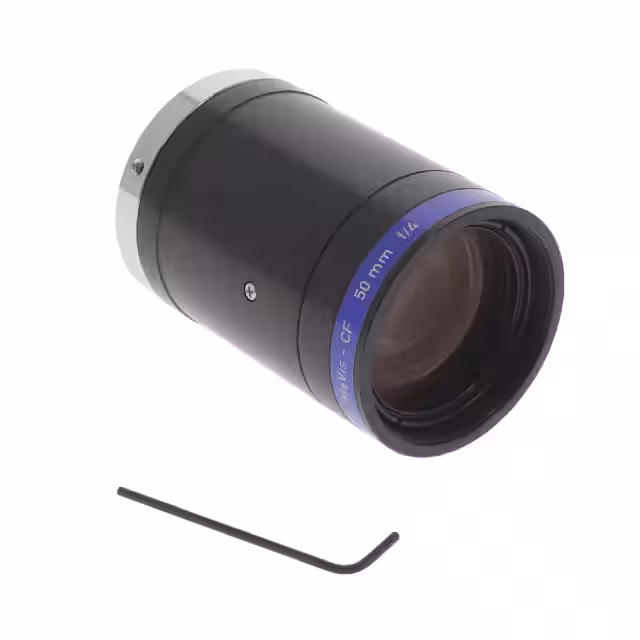

LENS STD F4 0X-0.075X C-MOUNT
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Resolution | 2µm |
| TV Distortion | - |
| Environment and package | |
| Compatible Sensor Size (Max) | 1" |
| Filter Size | M35.5 x P0.5 |
| Mounting Type | C-Mount |
| Operating Temperature | - |
| Package | Box |
| Other | |
| Depth Of Field | - |
| Diameter | 40.0mm Dia |
| Field of View | 16.0mm |
| Focal Length | 50.0mm |
| Focal Ratio | F4 |
| Length | 64.5mm |
| Magnification | 0x ~ 0.075x |
| Mfr | Excelitas Technologies |
| Product Status | Obsolete |
| Series | MeVis-CF |
| Type | Standard |
| Weight | - |
| Working Distance | 670mm (Min) |
