搜索结果：TC205

SOLDER SPONGE 2.5X2.5" PLAIN

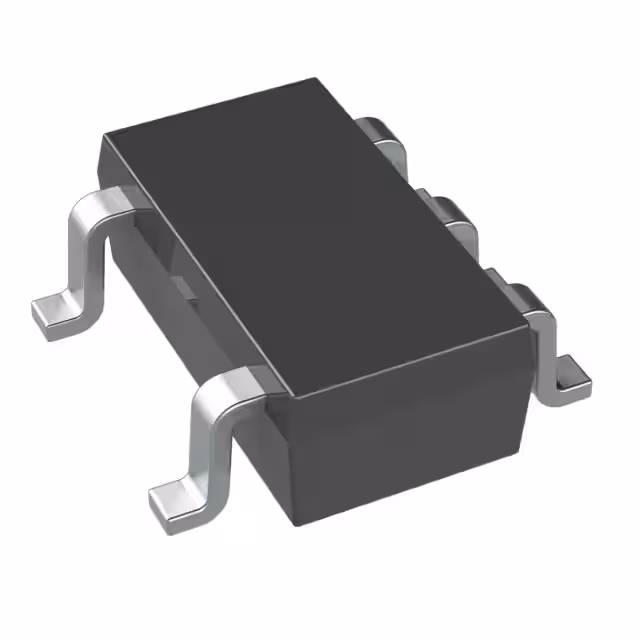

IC REG LINEAR 1.8V 50MA SOT23-5

IC REG LINEAR 2.7V 50MA SOT23-5

IC REG LINEAR 2.8V 50MA SOT23-5

IC REG LINEAR 3V 50MA SOT23-5

IC REG LINEAR 3.3V 50MA SOT23-5

IC REG LINEAR 1.8V 100MA SOT23-5

IC REG LINEAR 2.7V 100MA SOT23-5

IC REG LINEAR 2.8V 100MA SOT23-5

IC REG LINEAR 3V 100MA SOT23-5

IC REG LINEAR 2.85V 50MA SOT23-5

IC REG LIN 2.85V 100MA SOT23-5

The TC2054, TC2055, and TC2186 are high accuracy (typically ±0.4%) CMOS upgrades for older (bipolar) low dropout regulators. Designed specifically for battery-operated systems, the devices’ total supply current is typically 55µA at full load ( 20 to 60 times lower than in bipolar regulators). The devices’ key features include ultra low noise operation, very low dropout voltage - typically 45mV (TC2054); 90mV (TC2055); and 140mV (TC2186) at full load - and fast response to step changes in load. An error output (ERROR) is asserted when the devices are out-of-regulation (due to a low input voltage or excessive output current). Supply current is reduced to 0.5µA (max) and both VOUT and ERROR are disabled when the shutdown input is low. The devices also incorporate over-current protection. The TC2054, TC2055, and TC2186 are stable with a low ESR output capacitor of only 1µF and have a maximum output current of 50mA, 100mA, and 150mA, respectively. This LDO Family also features a fast response time (60msec typically) when released from shutdown.

TC2055 is a 1446/1440/1368/1284/1206/1086-channel source driver for high resolution TFT LCD. It is designed for COG (Chip-on-glass) application. The input interface is SIPI™ (Scalable Intra Panel Interface) which was developed and patented by Parade Technologies. SIPI is a high speed, point-to-point interface between the Timing Controller (TCON) and Source Driver (SD), including the TC2016. The SIPI intra panel interface provides scalable bandwidth with reduced bus width, low EMI and low power, a more robust protocol to establish the high-speed link, and enhance system reliability. SIPI was developed to address the newer demands created by increased display performance on notebook and tablet PCs and other consumer electronics applications.

TC2058 is a 1446/1440/1368/1356/1284/1230/1206/1086-channel source driver for high resolution TFT LCD. It is designed for COG (Chip-on-glass) application. The input interface is SIPI™ (Scalable Intra Panel Interface) which was developed and patented by Parade Technologies. SIPI is a high speed, point-to-point interface between the Timing Controller (TCON) and Source Driver (SD), including the TC2016. The SIPI intra panel interface provides scalable bandwidth with reduced bus width, low EMI and low power, a more robust protocol to establish the high-speed link, and enhance system reliability. SIPI was developed to address the newer demands created by increased display performance on notebook and tablet PCs and other consumer electronics applications.

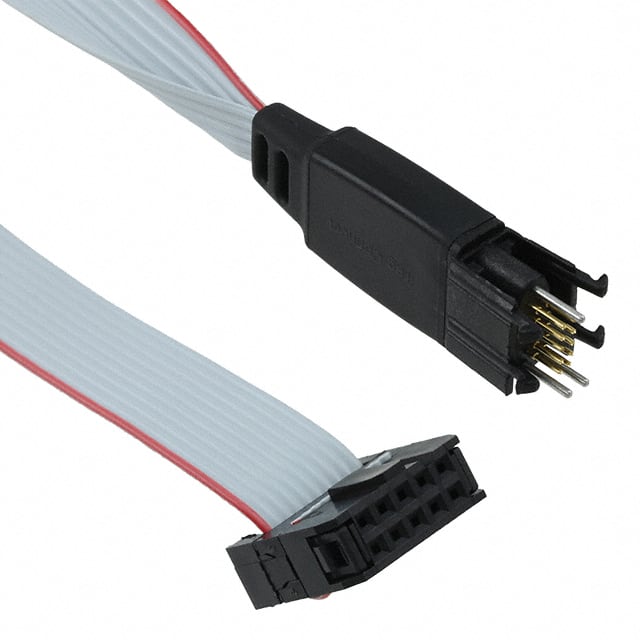

CBL PLUG-OF-NAILS 10-PIN W/LEGS

SWITCH ROCKER

SWITCH ROCKER

SWITCH ROCKER
