搜索结果：4CL

4 In Round Box

4 In Round Box

Quantic PMI Model 4CL3G-2G-CD-SFF is a Combline Bandpass Filter that has a center frequency of 3 GHz and a Passband of 2 GHz. The passband insertion loss is 1 dB with 4 Pole Response rejection. The filter measures 1.5" x 0.7" x 0.85" and is supplied with SMA Female connectors.

Quantic PMI Model 4CL6G-4G-CD-SFF is a bandpass filter centered at 6 GHz with a nominal bandwidth of 4 GHz. Package size is 1.5" x 0.7" x 0.6" with SMA female connectors.

Quantic PMI Model 4CL10G-4G-CD-SFF is a bandpass filter centered at 10 GHz with a nominal bandwidth of 4 GHz. Package size is 0.805" x 0.478" x 0.413" with SMA female connectors.

Quantic PMI Model 4CL15G-6G-CD-SFF is a bandpass filter centered at 15 GHz with a nominal bandwidth of 6 GHz. Package size is 0.805" x 0.478" x 0.463" with SMA female connectors in and out.

Planar Monolithics (PMI) Model 4CL64R5-3-CD-PIN is a combline bandpass filter centered at 0.064512 GHz with a 0.003 GHz bandwidth that features high out of band rejection and low passband insertion loss. Package size is 0.310" x 0.310" x TBD with solder pins.

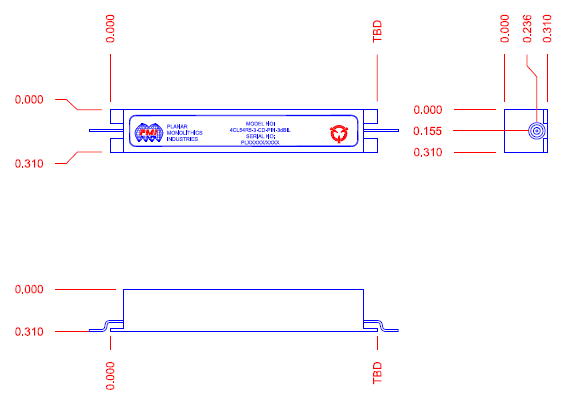

Planar Monolithics (PMI) Model 4CL64R5-3-CD-PIN-3dBIL is a combline bandpass filter centered at 0.064512 GHz with a 0.003 GHz bandwidth. This filter features high out of band rejection and low passband insertion loss.
