反向截止电压10 V
击穿电压11.1 V
钳位电压17 V
峰值脉冲功率400 W
全部替代型号
查看完整报告技术参数
反向截止电压10 V
击穿电压11.1 V
钳位电压17 V最大
峰值脉冲功率400 W
方向双向
| 电源 | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 23.5A |
| Power Line Protection | No |
| Power - Peak Pulse | 400W |
| Voltage - Breakdown (Min) | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Voltage - Reverse Standoff (Typ) | 10V |
| 交流 / 直流特性 | |
| Capacitance @ Frequency | - |
| 环境与封装 | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR) |

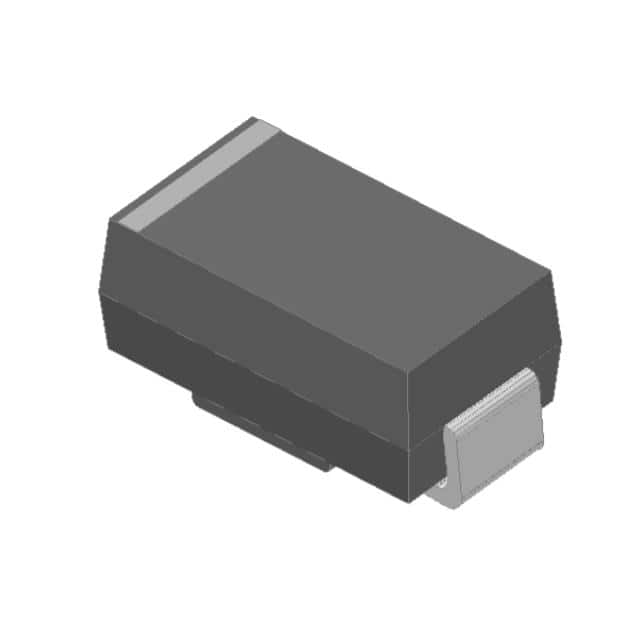

| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| 其他 | |
| Applications | General Purpose |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | SMAJ |
| Type | Zener |
