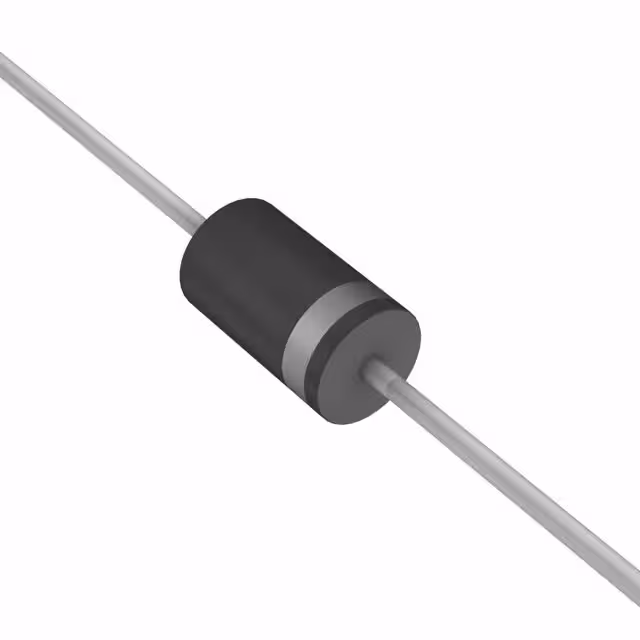

DIODE GEN PURP 600V 3A DO201AD
反向耐压600 V
平均整流电流3 A
正向压降1.7 V
类型标准
全部替代型号
查看完整报告技术参数
反向耐压600 V
平均整流电流3 A
正向压降1.7 V最大 · 3 A
类型标准Fast Recovery =< 500ns，> 200mA (Io)
| 电源 | |
|---|---|
| Current - Average Rectified (Io) | 3A |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 3 A |
| 环境与封装 | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Bulk |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD (DO-27) |
| 其他 | |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Product Status | Active |
| Reverse Recovery Time (trr) | 35 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
