ZF ElectronicsGermany

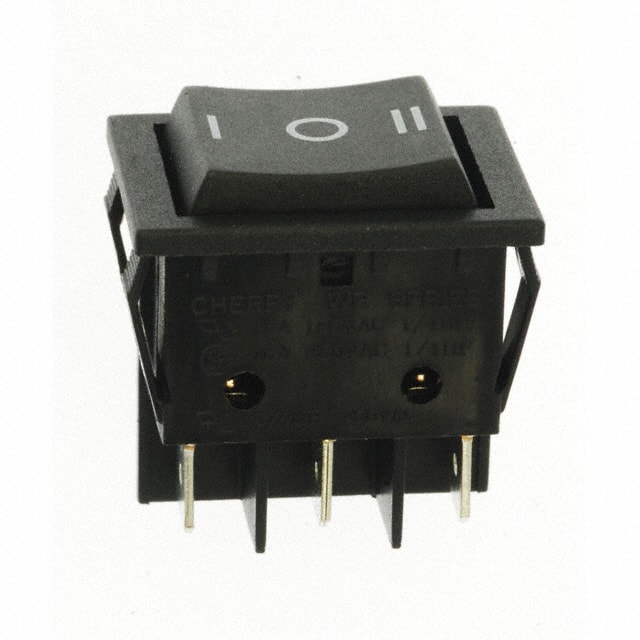

SWITCH ROCKER DPDT 16A 125V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-Off-On
Current rating16 AMax
Voltage rating125 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 16A (AC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 125 V |
| Environment and package | |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature | -20°C~65°C |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 30.00mm x 22.00mm |
| Other | |
| Actuator Marking | I O II |
| Actuator Type | Concave (Curved) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Electrical Life | 6,000 Cycles |
| Features | - |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | ZF Electronics |
| Product Status | Obsolete |
| Series | WR |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
