NXP USA Inc.Netherlands
MOSFET 2P-CH 20V 3.5A SOT1118
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.5A |
| Drain to Source Voltage (Vdss) | 20V |
| Power - Max | 520mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

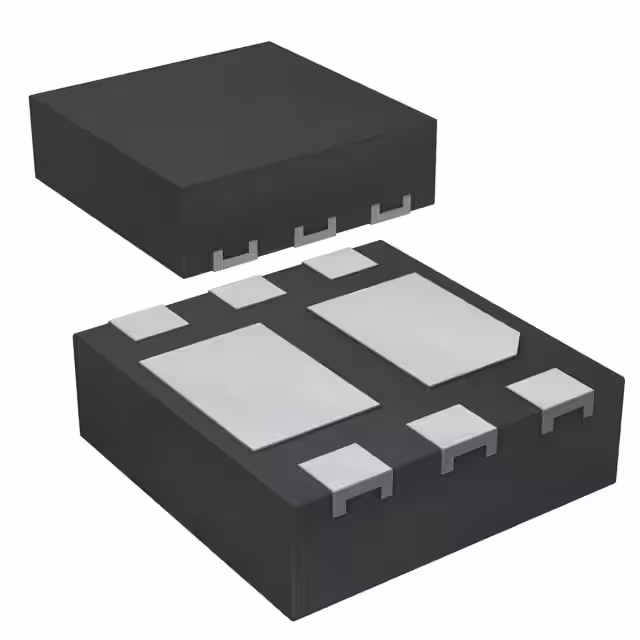

| Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | 6-HUSON (2x2) |
| Other | |
| Base Product Number | PMDPB |
| FET Feature | Logic Level Gate |
| FET Type | 2 P-Channel (Dual) |
| Gate Charge (Qg) (Max) @ Vgs | 6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 380pF @ 10V |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 1A, 4.5V |
| Series | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
