CV

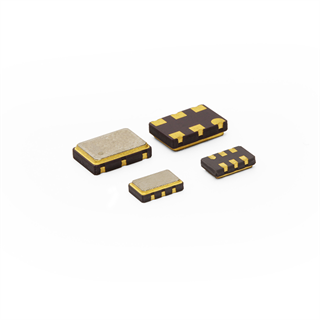

ActiveCTS Model CV Series is a high-performance clock oscillator supporting HCMOS and differential LVPECL or LVDS outputs. Employing the latest IC technology, CV Series has excellent stability and low jitter/phase noise performance. Download the CTS components are stocked and sold through a global network of distributors & sales representatives. Select your preferred partner in the link below.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage (V) | 1.8V / 2.5V / 3.3V |
| AC and DC characteristics | |
| Frequency Range (MHz) | 15 - 2,100 |
| Frequency Stability (PPM) | ±25 |
| Noise (Jitter pS) | 0.15 typical < 0.3 max |
| Environment and package | |
| Package (mm) | 5.0x3.2 SMD / 7.0x5.0 SMD |
