NXP USA Inc.Netherlands

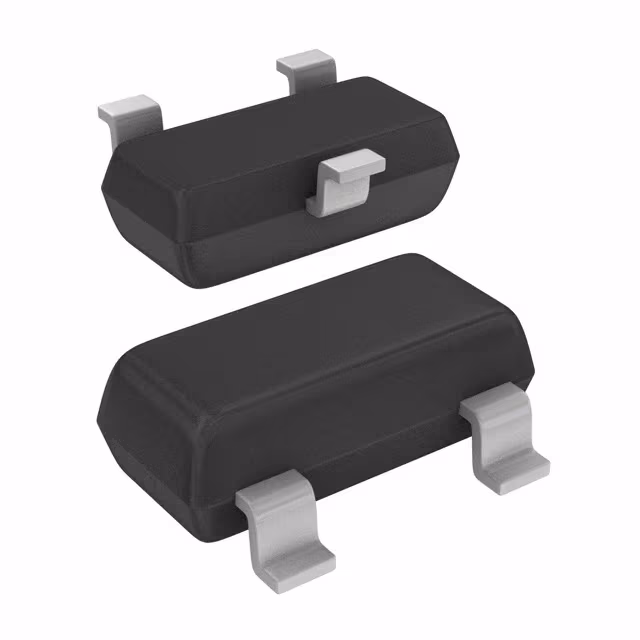

RF TRANS NPN 15V 5GHZ SOT323-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 25mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 65 @ 15mA, 10V |
| Frequency - Transition | 5GHz |
| Gain | - |
| Noise Figure (dB Typ @ f) | 2dB ~ 3dB @ 1GHz ~ 2GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Bulk |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70 |
| Other | |
| Base Product Number | BFR92 |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
