PUI Audio, Inc.United States

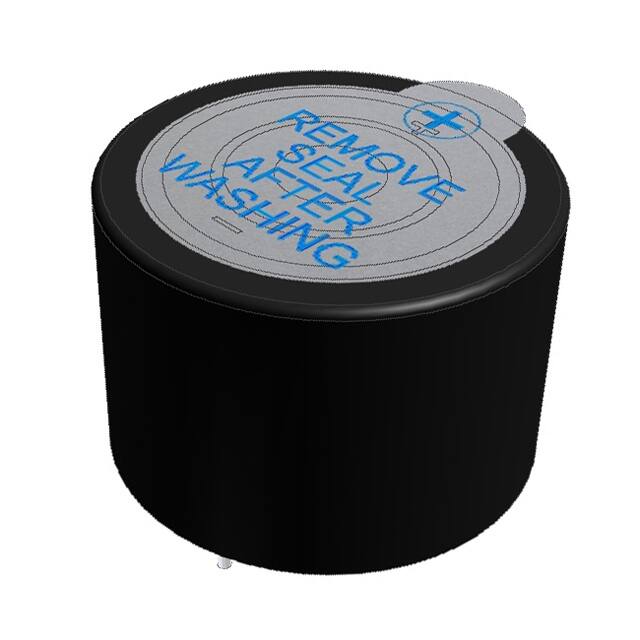

BUZZER PIEZO 12V 23.8MM TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 8mA |
| Voltage Range | 2 ~ 30V |
| Voltage - Rated | 12 V |
| AC and DC characteristics | |
| Frequency | 2.9kHz |
| Environment and package | |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Size / Dimension | 0.937" Dia (23.80mm) |
| Other | |
| Approval Agency | - |
| Driver Circuitry | Transducer, Externally Driven |
| Duration | - |
| Input Type | Peak-Peak Signal |
| Mfr | PUI Audio, Inc. |
| Operating Mode | Single Tone |
| Port Location | Top |
| Product Status | Active |
| Ratings | Washable |
| Series | AT |
| Sound Pressure Level (SPL) | 90dB @ 12V, 10cm |
| Technology | Piezo |
| Termination | PC Pins |
