AN101101
ZF ElectronicsGermany

AN101101

ActivePosition Sensors - Angle, Linear Position Measuring

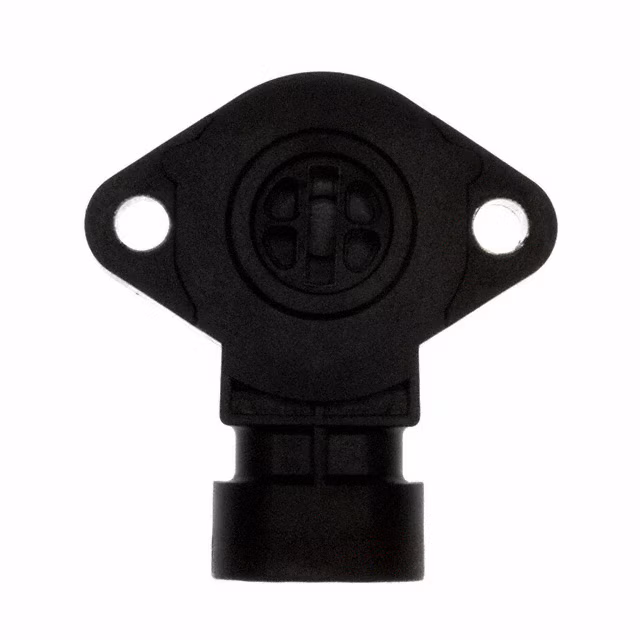

SENSOR ROTARY 120 DEG CONNECTOR

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Supply5V
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C~125°C
PackageBulk
Package / CaseBox with Connector
Supplier Device Package-
Other
Actuator TypeSlotted Shaft
For MeasuringRotary Position
Linearity±2%
Linear Range-
MfrZF Electronics
OutputAnalog Voltage
Output SignalCounterclockwise Increase
Product StatusActive
Resistance Tolerance-
Rotation Angle - Electrical, Mechanical5° ~ 85°, 0° ~ 120°
SeriesAN1
TechnologyMagnetoresistive
Termination StyleConnector
